X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Henan WadJay Machinery Co.Ltd
[China]

Address
601, Building 7, E-commerce Industrial Park, High-tech Zone Zhengzhou Henan
Phone
86-136-76965155
Contact name
dongpeng

Quick Information

  • Place of Origin: China
  • Automatic Grade : Automatic
  • Controlling Mode : CNC
  • Precision : Precision
  • Processing : Drilling Machine
  • Processing Types : Metal
  • Usage : Thread Processing Machine
  • Workpiece and Weight : Instrument Machine Tool
  • :

Description

Product Description

The main performance characteristics:

1.The machine is with universal milling head,it can swivel 360 degrees.

2.The table can swivel left and right side 35 degrees.

3.The machine can automatic feed on three axes controlled through one gear box.

4.The ram is movable forward and backward.

5.The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously.

6.The machine is equipped with operation panel which is convenient for the operator.

X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display



Machine parameters

Main specification

X5032

X5040

Table size

320 x 1325 mm

400 x 1700 mm

Spindle taper

7:24 ISO 50

7:24 ISO 50

Spindle bore

29 mm

29 mm

Distance from spindle nose to table surface

60-410 mm

30-500 mm

Distance from spindle axis to bed vertical guideway surface

350 mm

450 mm

T-slot(number/width/spacing)

3/18/70

3/18/90

Table max. longitudinal travel manual/automatic

700/680 mm

900/880 mm

Table max. cross travel manual/automatic

255/240 mm

315/300 mm

Table max. vertical travel manual/automatic

350/330 mm

385/365 mm

Table rapid speed longitudinal/cross/vertical

2300/1540/770 mm/min

2300/1540/770 mm/min

Max. turning angle of vertical milling head

±45°

±45°

Spindle travel

   70 mm

85 mm

Number of spindle speed

18(steps)

18(steps)

Spindle speed range

30~1500 r.p.m

30~1500 r.p.m

Number of table feed

18(steps)

18(steps)

Main motor power

7.5 KW

11 KW

Feed motor power

2.2 KW

3 KW

Overall dimension

2294 x 1770 x 1904

2556×2159×2258

Net weight/Gross weight

2900 kg/3200kg

4250 KG/4350KG



Machine details

X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display



X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display



X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display



X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display



Price

  • Delivery Port : qingdao

Product Image

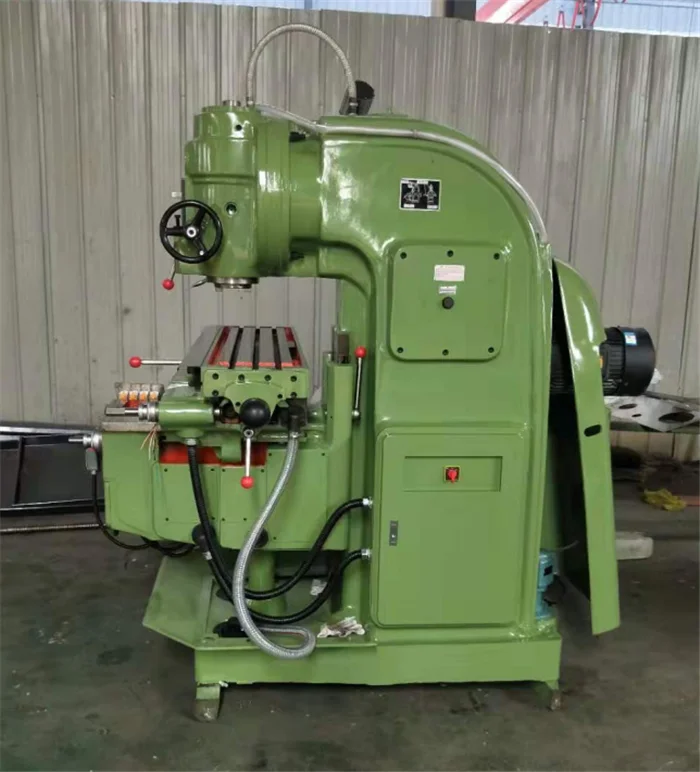

  • 1X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display image 1

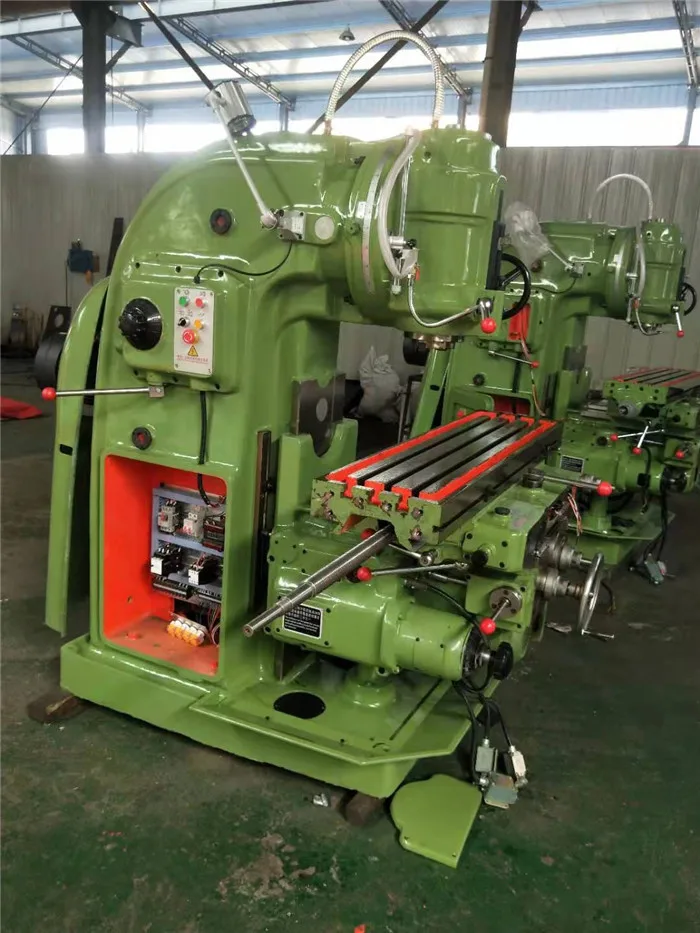

  • 2 X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display image 2

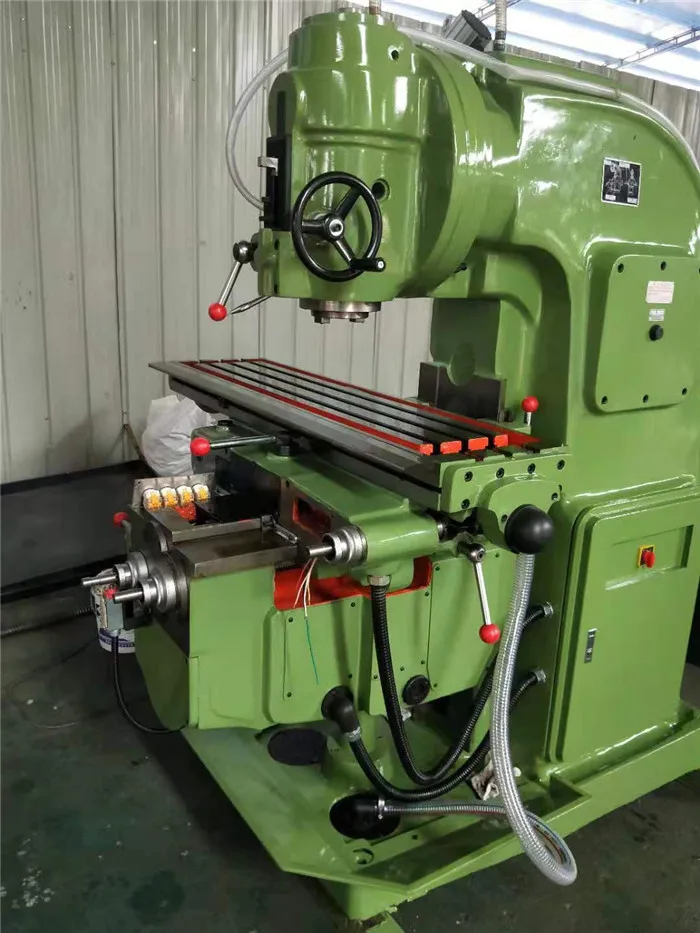

  • 3 X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display image 3

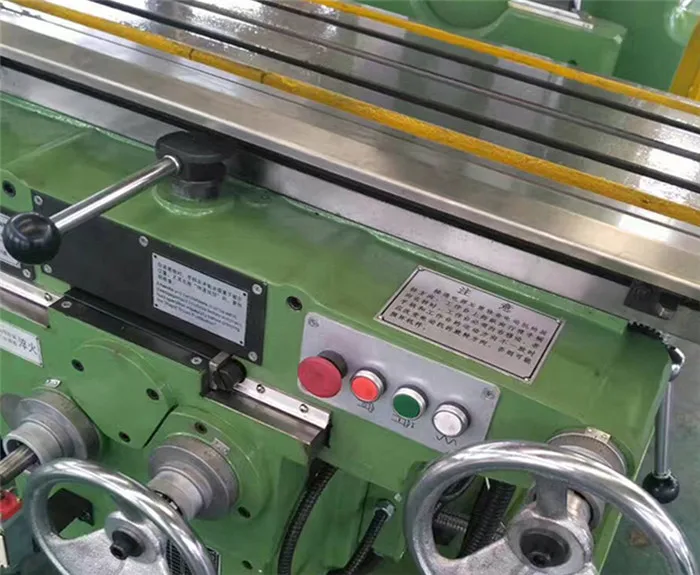

  • 4 X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display image 4

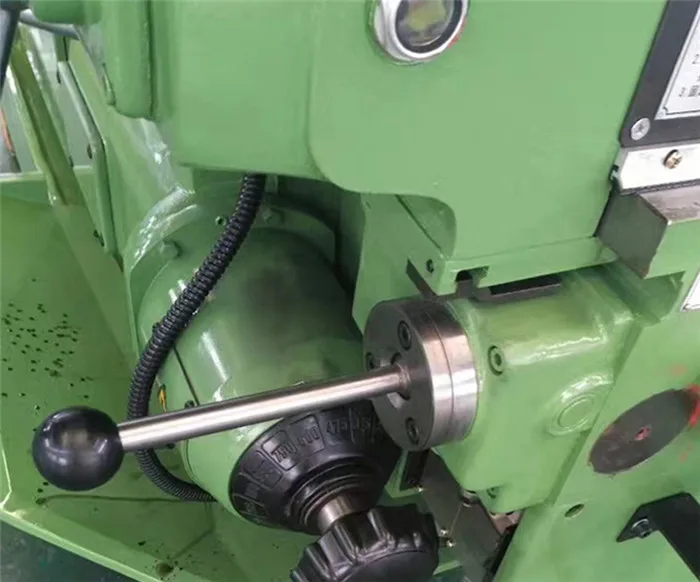

  • 5 X5032 Vertical Knee Milling Machine Vertical Milling Three-Axis Digital Display image 5
