Steel Ceiling Panel Forming Strut Lip GI Channel Stud Angle Roll Forming Keel Machine

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Henan WadJay Machinery Co.Ltd
[China]

Address
601, Building 7, E-commerce Industrial Park, High-tech Zone Zhengzhou Henan
Phone
86-136-76965155
Contact name
dongpeng

Quick Information

  • Place of Origin: China
  • :

Description

1. Specifications of ceiling panel forming machine

1)Main Techincal Data:

1.Model Number

KB14-105

2.Machine name

Steel ceiling panel machine

3.Weight4000KGS
4.Motor Power4KW
5.Hydraulic Power3.7KW
6.Material of principal axishigh grade 45# fogred steel
7.Voltage380V/50HZ/3PH
8.Forming Steps

15steps

9.Processing Speed12-16m/min
10.Thickness0.3-0.6mm
11.Feeding Material Width148-152mm
12.Effective Width

105mm

13.Height of Roofing14mm

2)Main Accessories:

(1)Main Forming Machines;

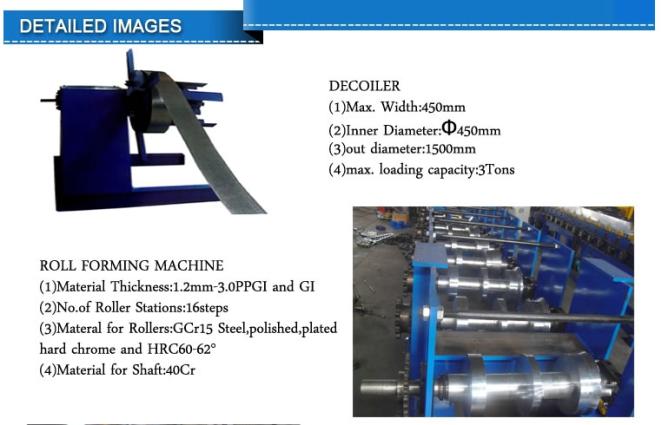

(2)5 Tons Manual Uncoiler;

(3)Hydraulic System;

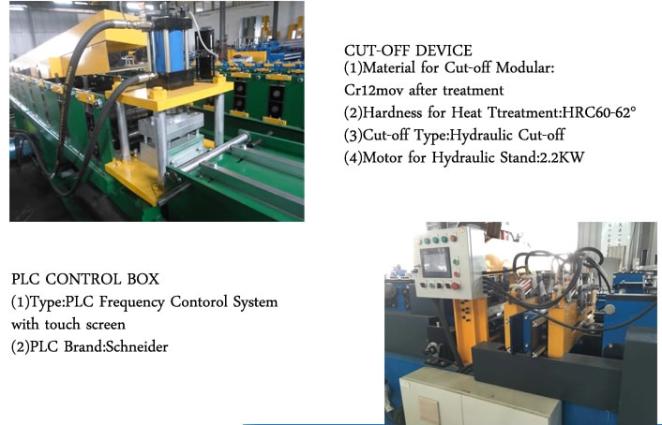

(4)PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching

     screen, cencorder and frequency changer)

(5) Hydraulic Forming Cutter;

(6)Tools;

(7)Operation Manual;


Product Image

  • 1Steel Ceiling Panel Forming Strut Lip GI Channel Stud Angle Roll Forming Keel Machine image 1
  • 2 Steel Ceiling Panel Forming Strut Lip GI Channel Stud Angle Roll Forming Keel Machine image 2
  • 3 Steel Ceiling Panel Forming Strut Lip GI Channel Stud Angle Roll Forming Keel Machine image 3
  • 4 Steel Ceiling Panel Forming Strut Lip GI Channel Stud Angle Roll Forming Keel Machine image 4
