Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Henan WadJay Machinery Co.Ltd
[China]

Address
601, Building 7, E-commerce Industrial Park, High-tech Zone Zhengzhou Henan
Phone
86-136-76965155
Contact name
dongpeng

Quick Information

  • Brand Name: wadjay
  • Place of Origin: China
  • Model Number : Keel Forming Machine
  • :

Description

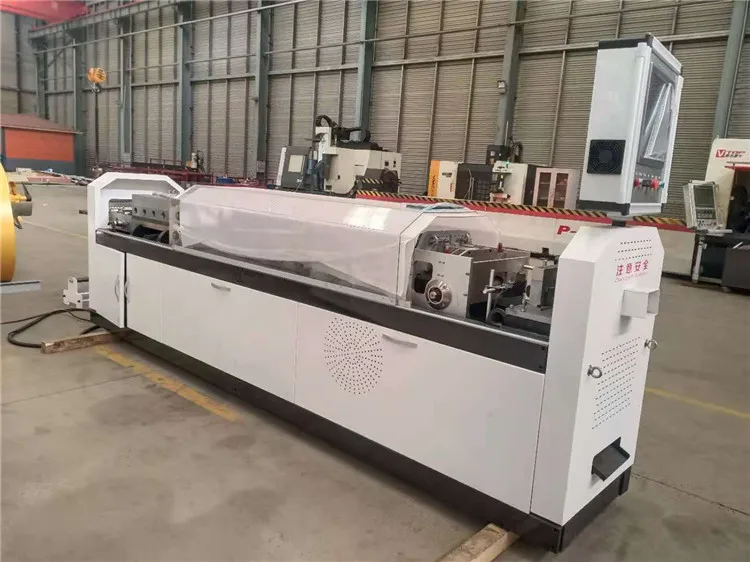

Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine

Product Description

Light steel villas machine, as the applicable high-strength cold-formed thin-walled light-steel structure building forming machinery and equipment system on the market, is a professional forming equipment system designed for cold-formed thin-walled light-steel structure building manufacturers. Wall light steel structure building components

Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming MachineRoll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine





motor15kw
weight3ton

Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine



Detailed Images

Machine main with 5 parts, feeding parts, forming parts, controll system, hydraulic system, Carrier aircraft



Feeding part

1. Drive mode: motor drive Yes Brake device Yes
2. Carrying weight: 3 tons
3. Inner diameter range: 450--530 mm

4. Maximum outer diameter: 1300 mm

5. Main brand of electrical accessories: Chint.

6. Other features: automatic feeding.



Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine



Forming part



1. Weight: 3 tons; specifications (length * width * height): 4 * 0.8*1.8 meters; total energy consumption: 15 KWH;
2. Number of forming roller sets: 8 sets, 4 sets of fine adjustment rollers; Whether the waist height is adjustable: No.
3. Transmission mode: gear, chain, gear + chain; motor brand: INVT;
Power: 7.5KW;
4. Roller material/brand: Cr12MoV,; Spindle material/brand: 40G, modulation treatment;
Cutting tool material/brand: Cr12MoV;
5. Conventional molding speed: 50 meters m/min;
Production capacity: According to the length of the profile and punching, the comprehensive output is 0.5-0.6 tons/hour;
6. Hole pitch tolerance: plus or minus 0.3 mm; length tolerance: 0.5 mm; straightness tolerance: 0.3 mm;
7. Inkjet printer, print head brand: Shengjiefeng; equipped with dual print heads, can identify the front and back



Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming MachineRoll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine



controll system

Accessories Brand: PLC/Relay/Switch/Encoder/Button/Inverter
PLC/---Mitsubishi,
Relay/switch/encoder/button/---Schneider.
Inverter/Delta.

2. Other advantages:
Low energy consumption, servo motor power: 7.5KW; hydraulic motor power 3.75KW;: high production efficiency: line speed 35m/min (punching speed: 15m/min), the unit intensively breaks the traditional forming concept, and does not jam , There are few molding passes, the products are regular, and the volume is small and convenient for transportation to the construction site.
The whole equipment is equipped with an encoder to control the host 1, inkjet printer 2, inkjet printer 3. During the production process, the host computer only accepts one position signal, which ensures the accuracy of the hole position and the keel size.



Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine

 hydraulic system



1. Power: 5.5 KWH; fuel tank capacity: 80 L; with energy storage
2. Pump/valve brand: Huade, legal control Huaqing



Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming MachineRoll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine



Carrier aircraft

4m pallet ,storage table

Roll Forming Buildings Machine Steel Frame Villa Light Gauge Keel Forming Machine



Light steel villas machine we acceptOEM, just send us your request
