High Speed CNC Horizontal Lathe Machines Price CK6140 Cutting Machines for Metal CNC Lathe

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Henan WadJay Machinery Co.Ltd
[China]

Address
601, Building 7, E-commerce Industrial Park, High-tech Zone Zhengzhou Henan
Phone
86-136-76965155
Contact name
dongpeng

Quick Information

  • Place of Origin: Taiwan
  • Automatic Grade : Automatic
  • Controlling Mode : CNC
  • Precision : High Precision
  • Processing : Lathe
  • Processing Types : Metal
  • Usage : General
  • Workpiece and Weight : Instrument Machine Tool
  • :

Description

Product Description

 1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.

2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.



Specification

Unit

CK6140

CK6150

Max.Swing Over Bed

mm

400

500

Max.Swing Over Cross Slide

mm

180

280

Max.Processing Length

mm

850

850

X/Z Axis Travel

mm

240/1050

300/1050

Spindle Transmission Type



Mechanical Second Gear Shift

Mechanical Second Gear Shift

Spindle Speed Steep



In-file frequency conversion without pole

In-file frequency conversion without pole

Spindle Speed

rpm

L:70-700 H:160-1600

L:70-700 H:160-1600

Spindle Nose



A2-6

A2-6

Spindle Bore

mm

52

52

Spindle Taper



MT6

MT6

Spindle Motor

KW

5.5

7.5

Chuck Size

mm

200

250

Ball Screw Dia. and Pitch



2506/4008

2506/4008

X/Z Axis Feed Motor Torque

N.m

4/6

5.5/7.5

X/Z Axis Repeatability

mm

±0.005

±0.005

Processing Accuracy



IT6-*IT7

IT6-IT7

Workpiece Surface Roughness



Ra1.6

Ra1.6

Tailstock Sleeve Dia.

mm

65

75

Quill Traverse

mm

140

140

Quill Taper

#

MT4

MT5

Turret Type



4 Station Electric Carrier Tool

4 Station Electric Carrier Tool

Cutting Tool Size

mm

20*20

25*25

Guide Way Type



Pingshan+Linear Guide Rail

Pingshan+Linear Guide Way

Total Power Capacity

KVA

10

12

Dimension (L*W*H)

mm

2600*1500*1650

2600*1560*1710

N.W

KG

1800

2000


High speed cnc horizontal lathe machines price CK6140 cutting machines for metal cnc lathe



High speed cnc horizontal lathe machines price CK6140 cutting machines for metal cnc lathe











High speed cnc horizontal lathe machines price CK6140 cutting machines for metal cnc lathe



High speed cnc horizontal lathe machines price CK6140 cutting machines for metal cnc lathe



High speed cnc horizontal lathe machines price CK6140 cutting machines for metal cnc lathe

CNC lathe Features



This CNC Lathe Machine is mainly used for processing various shaft , disk parts , turning can be all kinds of screw thread , arc , cone ,and plane of internal and external surface , can satisfy the ferrous and non-ferous metals the speed requirement of high-speed chip. Suitable for cars , motorcycles, electronics , aerospace , military industry and other industries to high efficiency , large quantity and high precision of parts processing . Machining precision can reach level.

Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.

High speed cnc horizontal lathe machines price CK6140 cutting machines for metal cnc lathe





Product Image

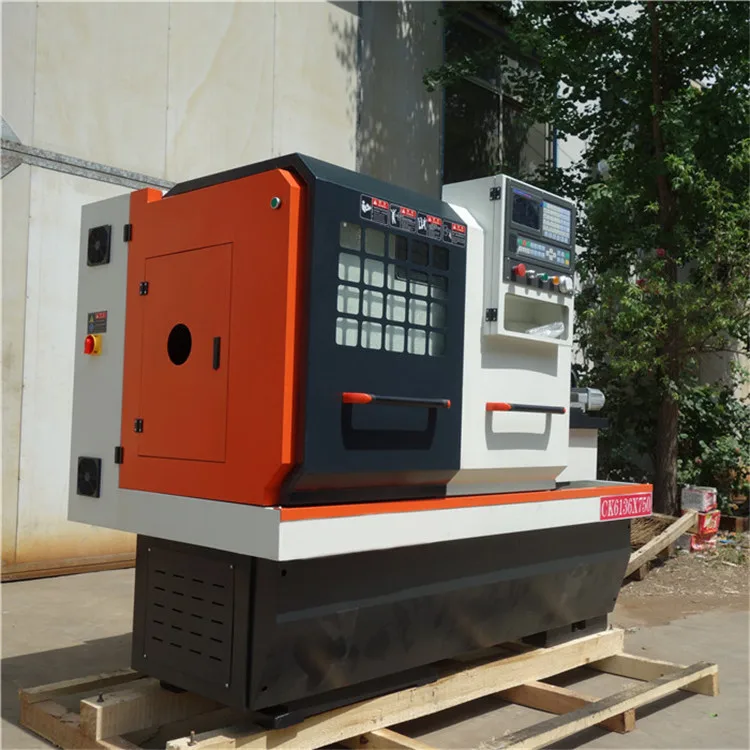

  • 1High Speed CNC Horizontal Lathe Machines Price CK6140 Cutting Machines for Metal CNC Lathe  image 1
  • 2 High Speed CNC Horizontal Lathe Machines Price CK6140 Cutting Machines for Metal CNC Lathe  image 2
  • 3 High Speed CNC Horizontal Lathe Machines Price CK6140 Cutting Machines for Metal CNC Lathe  image 3
