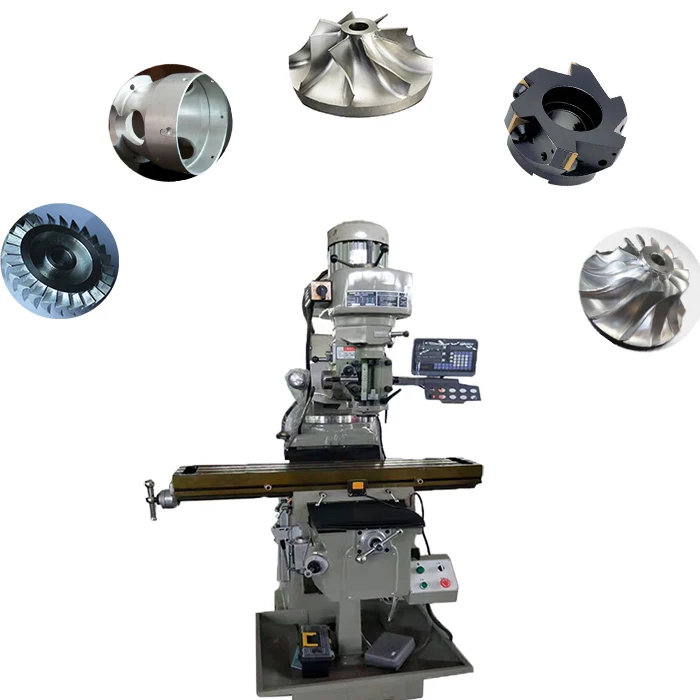

High Precision Machining Metal XK5030 Vertical CNC Turret Milling Machine Price

Quick Information

• Place of Origin: China
• Automatic Grade : Automatic
• Controlling Mode : CNC
• Precision : High Precision
• Processing : Milling Machine
• Processing Types : Metal
• Usage : General
• Workpiece and Weight : Instrument Machine Tool
• :

Description

Product Description

 EQUIPMENT INTRODUCTION

Brief  description:

1). The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of machine tool for long-term use.

2). The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting vibration body.

3). The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed.

4). The high speed, high precision and high rigidity spindle unit.

5). The intermittent automatic lubrication.



THE MAIN PARAMETERS OF THE MACHINE



ITEM	XK7124/XK7125
Size of worktable(length×width)	800mm×250mm
X-Axis travel	430mm
Y-Axis travel	300mm
Z-Axis travel	400mm
Spindle motor	2.2kw
Max.spindle speed	4500r/min
Spindle taper	NT30
Distance between spindle nose and table	105-500mm
Distance between spindle center and column	320mm
Positioning accuracy	0.02mm
repositioning accuracy	0.01mm
N.W (include machine stand)	900Kg
Packing size( L X W X H)	1220×1380×1650mm

MACHINE DETAIL PICTURES
