  • Brand Name: Wadjay
  • Place of Origin: China
  • Model Number : Roof Forming Machine
  • Production Capacity: : 30 m/min
  • Dimension(L*W*H): : 5600*1500*1500mm
  • Rolling thinckness: : 0.3-0.8mm
  • Feeding width: : 1250mm
  • Roller material: : 45#steel Chrome Plated
  • Cutting blade material: : Cr 12 High Grade Steel
  • Cutting Thickness (m): : 0.3-0.8mm
  • Main frame: : 300H Steel

Description

roll forming machine



Product Description

color steel sheet roll forming machine Usage& Drawing

♠color steel sheet roll forming machine can produce two designs,this machine process galvanized steel and color steel sheet,thickness is 0.3-0.7mm.

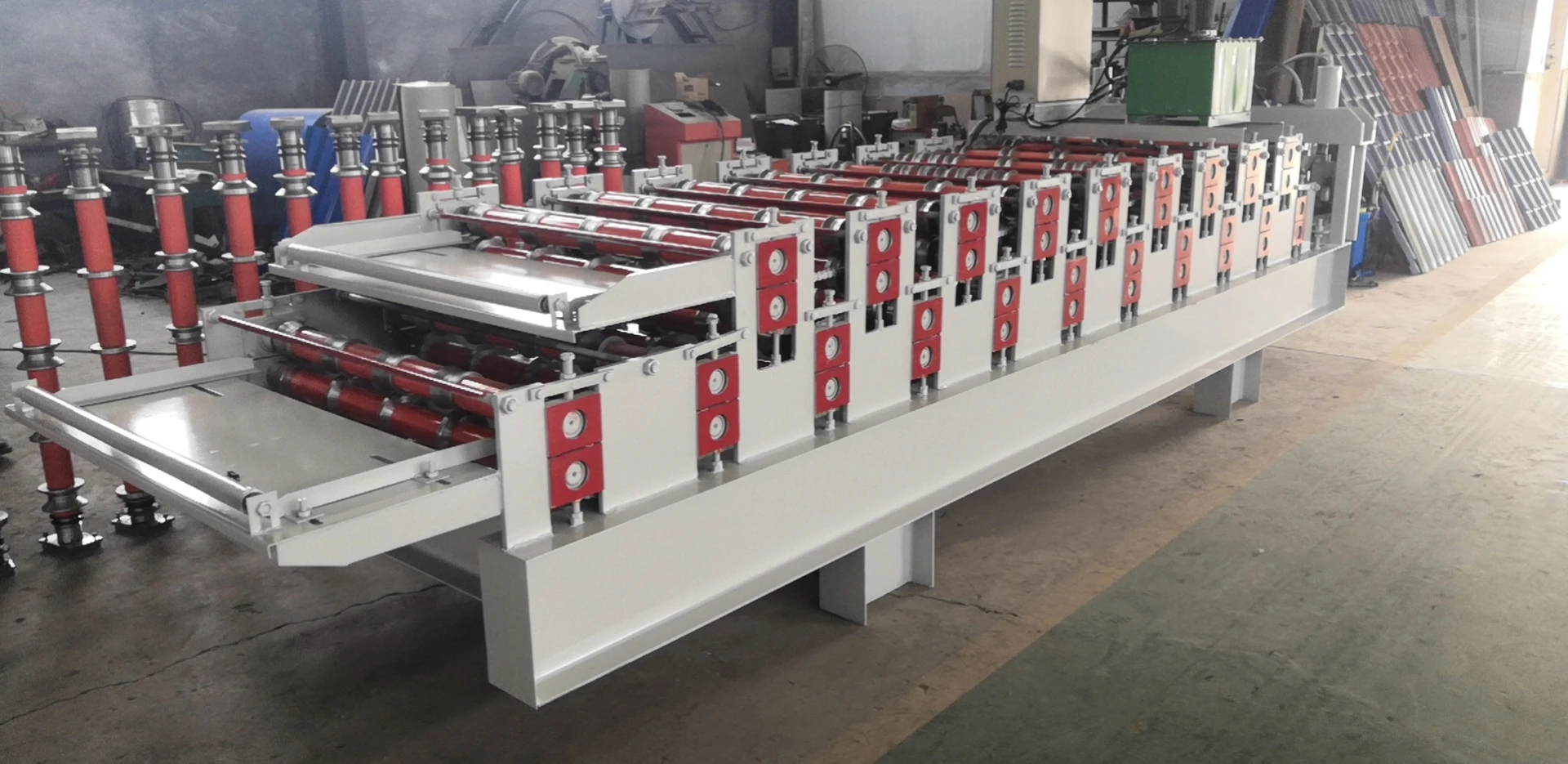

♠This color steel sheet roll forming machine the best advantage is save space.But three layers can not working in the same time.PLC can choose working by up layer,or down layer.

♠We can make color steel sheet roll forming machine as your request, our engineer will make drawings before you order.If you have drawing,please offer it to us,our engineer will confirm it and will give advise.

♠We are professional in color steel sheet roll forming machine,we have more than 20 years in this area.

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

Product parameter

color steel sheet roll forming machine Configuration

color steel sheet roll forming machine Producing process:

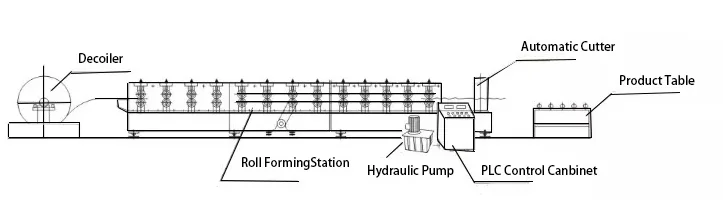

Material supporting frame→Molding core→Hydraulic system→Automatic control system→Automatic shearing maechanism→Roll forming receiving tables



Part 1: Metal sheet feeding

On this part have design of 2 handles: used to adjust width of metal sheet to avoid run left or right, can fix position well.

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

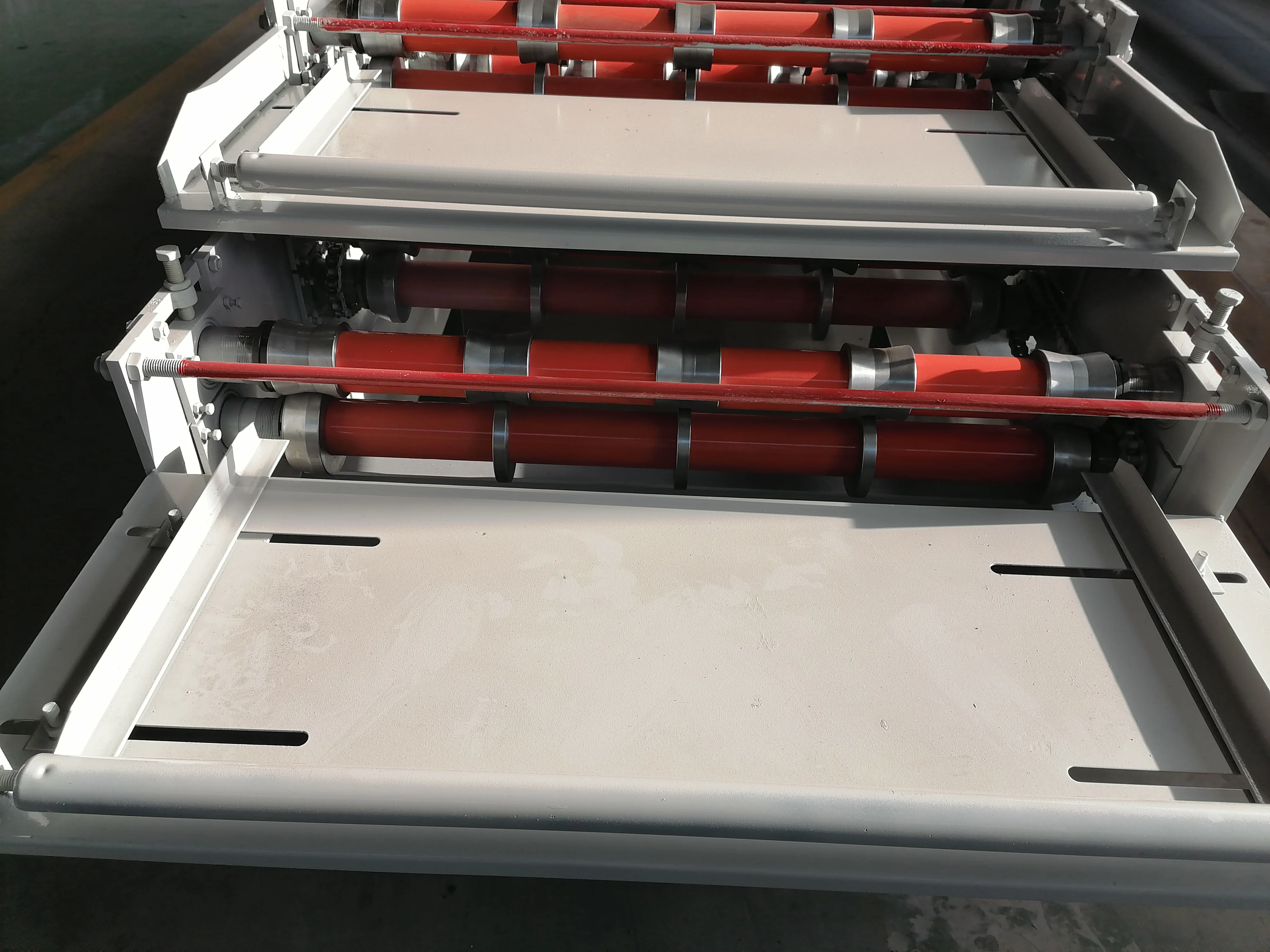

Part 2: Color steel tile roll forming/molding machine

Forming machine is main body of tile machine part, including shaft, wheels. Each type, rows of shaft and wheels not same. Usually Dia.70mm of shaft.

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

Part 3: Metal sheet cutting

Cutting part through heat-treating processing, durable and have long service lift. Could cut different thickness of metal sheet from 0.3mm-1mm. Also can be customized as per customer request.

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

Item

Parameters

Processing Material

PPGI,GI

Processing Thickness(mm)

0.6-1.6mm

Main Frame/Middle plate

H400 Steel Beam/

20mm Steel plate

Material of Rollers

45# steel, with hard chrome coated

Diameter of Shaft

100mm

Number of Rollers

26 stand rollers

Production Speed

0-14m/min

Roller Driven

Decelerating Motor+20A Chain Transmission

Cutting Model

Hydraulic Profile Cutting

Length Measurement

Encoder

Control Style

PLC

Operation Model

Button + Touch Screen

Total Power

27.5kw

Voltage

380V 50HZ or at buyer's request

Testing Material

Q195

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

Product features



Optional equipment:

General decoiling support with different tonnage

Hydraulic/manual automatic decoiler

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine



Corrugated iron sheet roofing tile making machine color steel sheet roll forming machine

Frequency changedCorrugated iron sheet roofing tile making machine color steel sheet roll forming machineUsed to adjust speed
PLC systemCorrugated iron sheet roofing tile making machine color steel sheet roll forming machinePLC have different processing can be customized, like Simens, Schneider, Omron etc.
CounterCorrugated iron sheet roofing tile making machine color steel sheet roll forming machineMainly to counting piece of tiles. If customer want produce 1 shape tile 5 pieces, counter will have memory to give signal to PLC, after 5 pieces reached, stop automatically, very automated.
Limit switchCorrugated iron sheet roofing tile making machine color steel sheet roll forming machineLimit switch used to control length of metal sheet. If 1 meter be setted up in PLC processing, then limit switch give signal when have 1 meter of tile, prepare next step of cutting.
