Quick Information

  • Place of Origin: China
  • Automatic Grade : Automatic
  • Controlling Mode : Machining Center
  • Precision : High Precision
  • Processing : Milling Machine
  • Processing Types : Metal
  • Usage : General
  • Workpiece and Weight : Large Machine Tool
  • :

Description

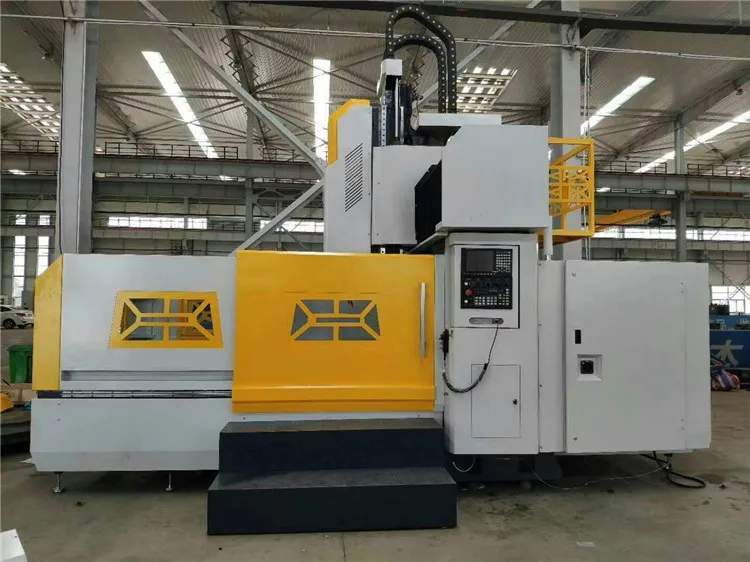

China Automatic Machining Center CNC Gantry Machine CNC Machining Center

Product Description

China Manufacturers XK3016 series CNC milling machine, gantry machining center has a single-column fixed structure and a movable worktable. It is mainly composed of bed, column, beam, transverse sliding table, worktable, spindle, screw rod, lubrication system, cooling system, CNC operation panel and electronic control system.

China Automatic Machining Center CNC Gantry Machine CNC Machining Center

Details paraments of China Manufacturers XK3016 series CNC milling machine, gantry machining center

Model:  WDL-3016/HLM3016
X, Y, Z coordinate stroke: 3200 mm*2200mm*900mm
Maximum width between two columns 1600 mm
The distance from the spindle end to the plane on the worktable is 150~1050mm
X, Y, Z cutting feed rate 0~5000 mm/min
Workbench specifications (length×width) 3200 mm*1200mm
Maximum load of table 8000kg
Table T-slot (number of slots × width × slot distance) table surface quenching: 7mm*22mm*170mm
X, Y rapid feed rate: 12m/min, 12m/min
Z rapid traverse speed: 10m/min
Spindle speed range: 50-6000 r/min
Spindle taper : BT50-150
Disc type/chain type tool magazine (no tool magazine for CNC milling): BT50-24T/32T
Maximum tool diameter: Empty tool Φ250 Full tool Φ125
Maximum tool length :400mm
Maximum tool weight: 16kg
Tool magazine form Disc type/chain type
Spindle motor: βil30/6000kW
X, Y, Z servo motor: βilS30/2000kW
Repeat positioning accuracy: 500mm/+ 0.005mm
Positioning accuracy: 500mm/+0.0075mm
CNC system FANUC/Siemens/Mitsubishi/new generation two-speed reducer: 1:3
Use source gas pressure: 0.8 MPa
Electric capacity: 36kW
Machine tool outline size (L×W×H): 8500 mm*4500 mm*4800mm
Machine weight:  35000 kg



Detailed Images

 China Automatic Machining Center CNC Gantry Machine CNC Machining CenterChina Automatic Machining Center CNC Gantry Machine CNC Machining CenterChina Automatic Machining Center CNC Gantry Machine CNC Machining CenterChina Automatic Machining Center CNC Gantry Machine CNC Machining Center



Price

  • Delivery Port : qingdao
